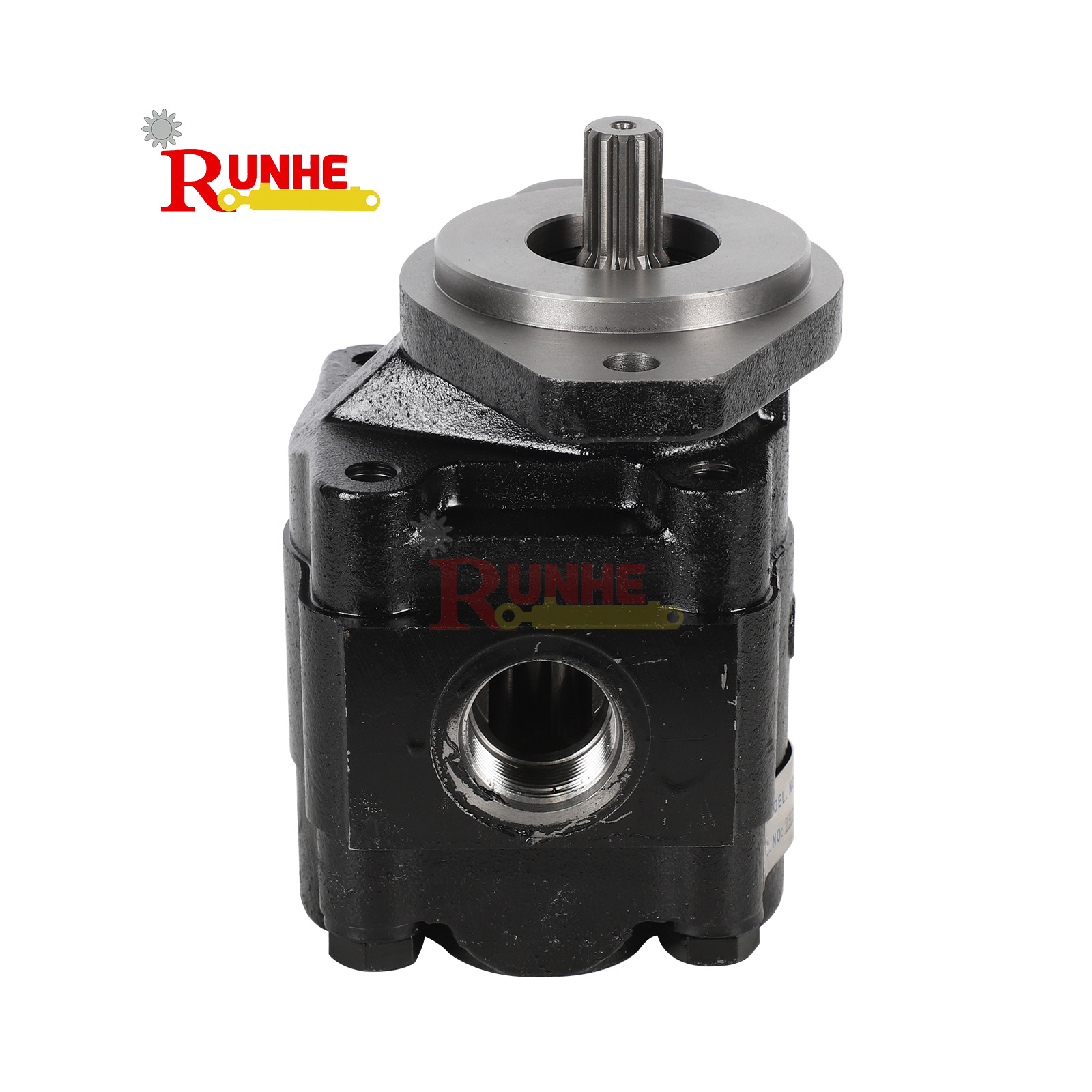

P30 gear pump

How can you select a high-quality product? Drawing on years of practical experience in system integration, Runhe has developed a systematic selection process to help customers choose the P30 gear pump that best meets their needs and avoid selection errors.

The first step in the selection process is to calculate the three core parameters—rated pressure, displacement, and rotational speed—which are also the most critical aspects of P30 selection. This series can handle a maximum continuous operating pressure of 207 bar, an intermittent peak pressure of 248 bar, and a rotational speed range of 600–2400 rpm, with displacements ranging from 16.4 ml/r to 80.7 ml/r across various models. When selecting a pump, the rated pressure should be 1.1 to 1.5 times the system’s safety valve pressure to allow for load fluctuations and prevent long-term full-pressure operation, which accelerates internal wear; displacement should be calculated based on the system’s required flow rate and drive speed. Excessive displacement leads to wasted energy, while insufficient displacement results in weak performance. Additionally, strictly match the pump to the original equipment’s rated speed; prolonged operation at excessive speeds will accelerate wear on bearings and gears, while speeds that are too low will prevent the pump from achieving the preset flow rate.

Many selection errors stem from overlooking installation dimension details. The P30 gear pump complies with SAE international standards and is available with various mounting flanges, shaft extensions, and port configurations; when replacing an old pump, be sure to verify each item individually. Flanges are available in SAE two-hole and four-hole mounting styles; shaft extensions include two mainstream specifications: flat-keyed shafts and involute spline shafts. If the number of splines or the module does not match, the pump cannot be connected to the drive shaft. Inlet and outlet ports come in different thread specifications and orientations; misalignment of port directions can cause forced bending of piping, air ingestion during suction, and abnormal system noise. For hydraulic systems with multiple actuators, you can also select single-stage, dual-stage, or multi-stage P30 pumps as needed to simplify the multi-line hydraulic supply layout and meet the requirements for synchronized control of complex movements.

Selecting internal configurations tailored to the operating environment is essential to fully leverage the P30 cast iron pump’s material advantages, such as impact resistance and dust resistance. In dusty and humid field or construction site conditions, prioritize reinforced seal kits to prevent moisture and fine contaminants from entering the pump chamber; for long-term, continuous operation in high-temperature environments, select models with integrated relief valves and load-sensing valves to stabilize pressure, relieve load, and optimize energy consumption; for equipment undergoing frequent cold starts in low-temperature winter conditions, verify the temperature resistance rating of the seals in advance to prevent hardening and leakage at low temperatures. Avoid blindly purchasing low-cost refurbished pumps. Genuine P30 pumps undergo 100% factory pressure testing; their gears are precision-machined from quenched alloy steel and paired with heavy-duty needle roller bearings and pressure balance plates, enabling volumetric efficiency to be maintained at around 95% over the long term. Their long-term operational cost-effectiveness far exceeds that of low-spec replica products.

Blind, piecemeal online purchases are highly prone to issues such as mismatched models, refurbished or substandard products, and inadequate after-sales support. Runhe offers brand-new, genuine P30 Gear Pumps in all specifications from stock. All products comply with original manufacturer drawings and specifications, and we support reverse selection based on old pump models for equipment replacement and bulk supply for complete machine projects. Customers seeking to purchase, replace, or obtain technical consultation can visit our official website to view detailed P30 specification sheets and submit their operating conditions online to receive a customized selection plan. With genuine quality, comprehensive inventory, and comprehensive after-sales support, we lay a solid foundation for the stable operation of your hydraulic systems.
