hydraulic cylinders for seeders damage prevention guide

hydraulic cylinders for seeders damage prevention guide

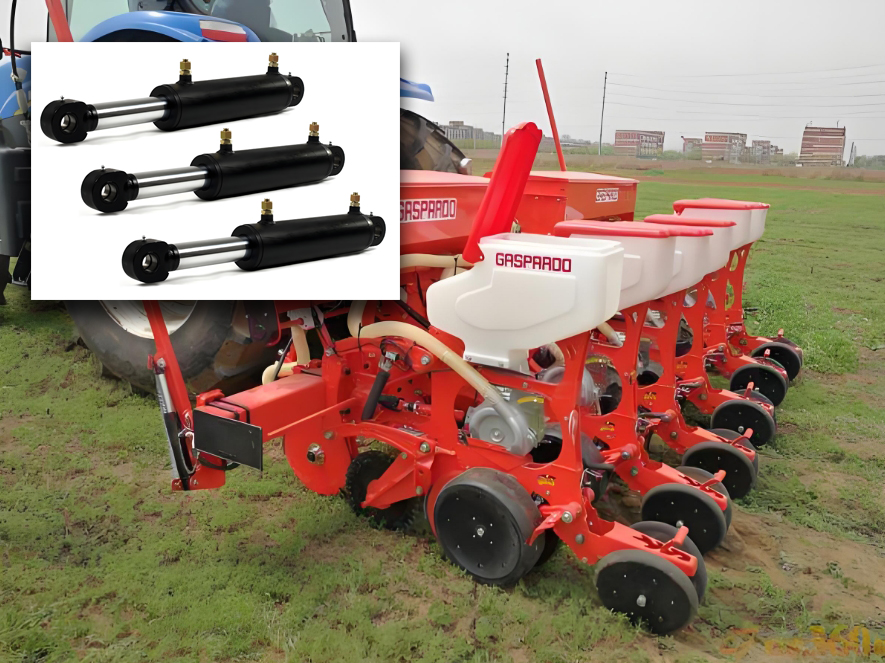

Hydraulic cylinders for seeders are the core components of industrial equipment to realize linear motion, widely used in engineering machinery, machine tools and other fields. Long-term high-pressure, high-frequency movement and complex working conditions, some of the key parts are easy to damage, affecting the operation of the equipment. In this article, we will analyze the six vulnerable parts and countermeasures to help users quickly identify and prevent failures.

1. Seals: the most vulnerable to aging and wear “protective line”

Seals (piston seals, piston rod seals, dust rings) is the key to preventing hydraulic oil leakage, but also the highest failure rate of components.

Common problems: aging and cracking of seals, wear and deformation, resulting in internal leakage (affecting thrust) or external oil leakage (polluting the environment).

Reason for damage：① high-pressure friction: piston seal long-term friction with the inner wall of the cylinder barrel, surface wear. ② temperature effects: oil temperature is too high to accelerate rubber aging, too low to cause elastic failure. ③ Oil contamination: 70% of the seal damage originates from impurity scratches, dust, metal particles stuck in the seal gap.

Maintenance suggestions: according to the working conditions every 1-3 years to replace the seals, high temperature environment selection of fluorine rubber material, regular cleaning of hydraulic oil.

2. Piston rods: exposed and shock-prone “exposed parts”

The piston rod is the only exposed moving part that is directly affected by loads and the environment.

Common problems: surface scratches, dents, rust, or worn guide bushings leading to seal failure and cylinder creep.

Reason for damage: ①External impact: craters formed by stones and steel bars during the operation of construction machinery. ② environmental corrosion: wet or corrosive environment, chrome layer broken metal matrix rust.

Maintenance suggestions: add dust cover, choose hard chrome plating (thickness ≥ 20μm), and regularly apply grease to protect the exposed surface.

3. Cylinder barrel inner wall: the “invisible wear zone” under high pressure

Cylinder barrel inner wall precision directly affects the sealing effect, damage is often overlooked.

Common problems: longitudinal scratches, hair pulling or corrosion pits on the inner wall, leading to oil leakage and rattling.

Reason for damage: ① particle abrasion: metal chips in the oil, welding slag high-speed scouring of the inner wall, the formation of grooves; ② chemical corrosion: the oil contains water or acid, the inner wall without anti-corrosion treatment of pockmarks.

Maintenance recommendations: the use of high-strength materials, to ensure the installation of coaxiality, regular testing of oil cleanliness.

4. Piston and guide sleeve: the “core component” of precision fit

Piston and guide sleeve are responsible for force transmission and guidance, and the change of fit clearance affects the performance.

Common problems: piston sealing groove wear, guide sleeve inner diameter expansion, resulting in metal friction rattling.

Reason for damage: ① Lubrication failure: insufficient hydraulic oil or clogged oil circuit, direct friction of metal surfaces. ② impact load: frequent start-stop or sudden change in load, piston sealing groove edge cracking, guiding sleeve plastic deformation.

Maintenance recommendations: selection of wear-resistant materials, the system is equipped with a buffer valve to reduce the impact.

5. Cylinder head connection area: “weak link” for stress concentration

Cylinder heads (front and rear end caps) are connected by bolts, snap rings or welding and are susceptible to alternating loads.

Common problems: broken bolts, deformed snap rings, cracked welds, resulting in dislodged cylinder heads or oil leakage.

Reason for damage: ① Installation defects: uneven bolt preload or poor welding process, stress concentration during vibration. ② Overload operation: loads exceeding the rated pressure lead to long-term deformation of the connection parts under stress.

Maintenance suggestions: use torque wrench to tighten according to the specified torque when installing, check the loosening or cracking of the connection parts regularly, and avoid overloading of the cylinder.

Damage to hydraulic cylinders for seeders mostly stems from “insufficient lubrication, contamination, overloading, improper installation” and so on. Daily maintenance needs to focus on these issues in order to effectively extend the service life of the product.
