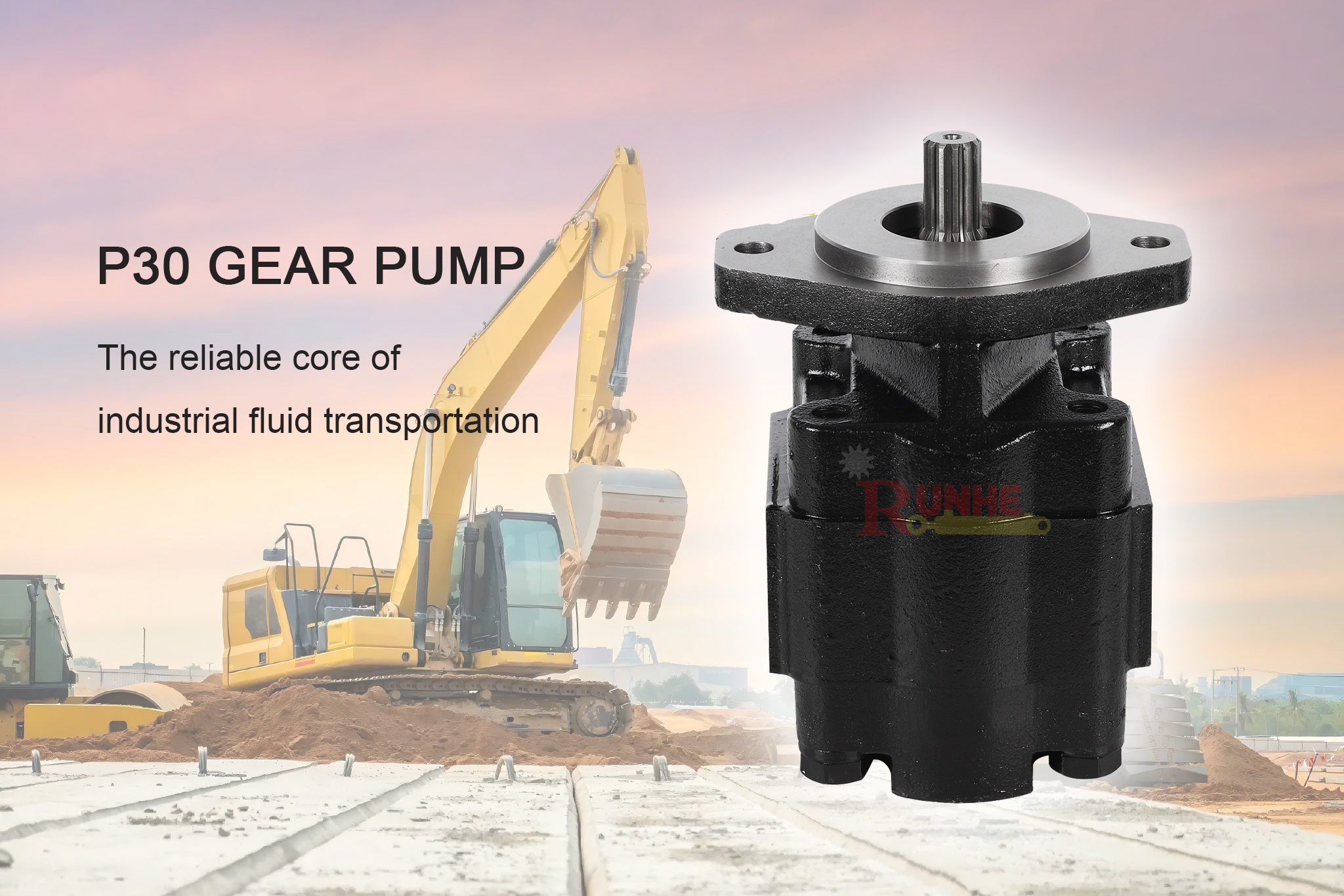

P30 Gear Pump: The Reliable Core of Industrial Fluid Transfer

P30 Gear Pump: The Reliable Core of Industrial Fluid Transfer

In the field of industrial fluid conveyance, gear pumps occupy an important position due to their compact structure and stable operation. Among them, the P30 gear pump, as a classic model, has become the preferred equipment in many industries thanks to its high efficiency and adaptability. Its design concept combines the precision of mechanical engineering with the practicality of industrial applications, playing an irreplaceable role in hydraulic systems, lubrication devices, fuel conveyance, and other scenarios.

The core structure of the P30 gear pump exemplifies the ingenuity of mechanical design. It primarily consists of a pair of meshing gears, a pump body, front and rear end covers, bearings, and sealing devices. The gears are typically made from high-strength alloy steel, precision-machined to ensure gear tooth alignment, with surface hardness reaching HRC58-62, sufficient to withstand friction and impact under high pressure. The mating surfaces between the pump body and end covers are ground to ensure flatness with an error of less than 0.01 mm/m. Combined with specialized sealing gaskets, this forms a sealed working chamber, effectively preventing fluid leakage. This structural design not only ensures the pump's sealing performance but also significantly reduces energy loss during operation.

In terms of operating principle, the P30 gear pump relies on the meshing motion of gears to achieve fluid conveyance. When the drive gear rotates under motor drive, the driven gear rotates in the opposite direction. The tooth slot space at the meshing point between the two gears undergoes periodic changes: the tooth slots on the suction side gradually separate, forming a low-pressure zone, and fluid is drawn in under atmospheric pressure; while the gear teeth on the discharge side continuously mesh, causing the space to shrink, forcing the fluid out through the discharge pipe. This positive displacement operating principle enables the P30 gear pump to deliver stable flow characteristics, with flow fluctuations kept within ±2% at rated speed, making it particularly suitable for applications requiring precise metering.

The P30 gear pump has a wide range of applications across multiple industrial sectors. In mechanical manufacturing, it is commonly used as a power source for hydraulic systems, providing stable pressure for machine tool clamping, feeding, and other operations; in the petrochemical industry, it can transport medium-to-low viscosity fluids such as diesel and lubricating oil, with corrosion-resistant material options capable of handling certain mildly corrosive fluids; In agricultural machinery, modified P30 gear pumps can be used for power transmission in pesticide spraying and irrigation systems. It is important to note that the optimal operating viscosity range for this pump model is 10-300 cSt. If the viscosity exceeds this range, the speed must be adjusted or specialized accessories selected to prevent efficiency loss or component wear.

Maintenance and servicing are key to extending the service life of the P30 gear pump. During daily operation, it is essential to regularly check the oil temperature to ensure it does not exceed 80°C, thereby preventing seal aging. Every 500 hours of operation, the lubricating oil should be replaced, and the oil filter cleaned to prevent contaminants from entering the gear meshing surfaces. If abnormal noise or pressure fluctuations are detected, the pump should be shut down immediately to inspect gear wear and bearing clearance, and replace any worn parts as necessary. Proper maintenance can extend the P30 gear pump's mean time between failures (MTBF) to over 8,000 hours, significantly reducing equipment maintenance costs.

As a mature industrial fluid handling device, the P30 gear pump, with its reliable structure and stable performance, continues to play a crucial role in modern industrial production. Whether in standardized production lines or customized equipment, it can adapt flexibly to meet diverse application requirements, serving as a key link in fluid transportation systems and embodying precision and efficiency in the advancement of industrial automation.
