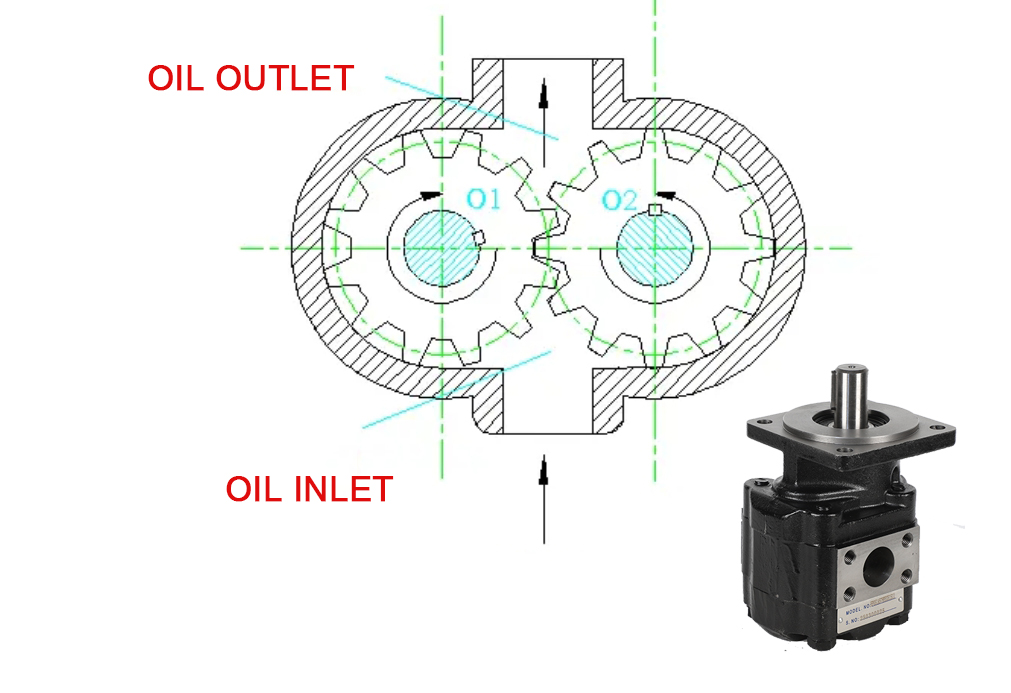

As a widely used power component in industrial equipment, the proper installation and maintenance of hydraulic gear pumps directly affect their service life and operational efficiency. This article is a hydraulic gear pump catalogue that provides a brief overview of potential faults in gear pumps to facilitate user experience.

1. Pressure Abnormalities

Insufficient Pressure: Increased gear meshing clearance due to wear causes leakage from the high-pressure chamber to the low-pressure chamber; poor sealing between the pump body and end cover (aged gaskets or out-of-tolerance flatness); air leaks in the suction line disrupt vacuum pressure (more likely to occur when suction lift exceeds the rated value).

Excessive Pressure: External piping blockage or valves not fully open, causing sudden increase in discharge resistance; safety valve malfunction preventing pressure relief, leading to continuous pressure rise.

2. Abnormal Flow Rate Faults

Sudden Flow Rate Decrease: Gear shaft fracture or coupling disengagement causing idle rotation; clogged oil filter increasing suction resistance.

Gradual flow decrease: Axial leakage caused by a gap exceeding 0.03 mm between the gear end face and end cover; viscosity of the medium exceeding the applicable range, causing blockage.

Severe flow pulsation: Large gear tooth profile error (cumulative tooth pitch error exceeds specifications); bearing wear causing gear center distance deviation.

3. Leakage faults

Shaft end leakage: Wear of the mechanical seal's moving ring and stationary ring (medium contains impurities); aging of the seal ring (long-term high-temperature operation); loosening of the packing seal cover or depletion of the packing.

Pump body joint surface leakage: Uneven tightening torque of the end cover bolts; seal gasket specifications do not match; deformation of the pump body due to temperature differences.

4. Abnormal Noise and Vibration

High-frequency piercing noise: High intake pipe resistance (pipe diameter too small) causing cavitation; low oil tank level, air entering the suction pipe.

Low-frequency muffled noise: Gear and pump body radial clearance too small (<0.1 mm) causing friction; bearing raceway wear; poor gear meshing (assembly phase misalignment).

Severe vibration: Gear dynamic balance accuracy exceeds specifications (noticeable at speeds over 1800 r/min); misaligned coupling installation; resonance caused by loose pump body mounting bolts.

5. Overheating faults

High pump body temperature (exceeding 90°C): Increased friction due to small gear meshing clearance; poor bearing lubrication (incorrect oil viscosity or insufficient quantity); poor heat dissipation due to blocked return oil lines.

Medium-induced overheating: Medium viscosity exceeds design range, causing high resistance; high medium temperature (exceeding 120°C) damaging the oil film.

 6. Mechanical wear and tear faults

Gear tooth surface wear: Medium contains hard particles; poor lubricant cleanliness; long-term overload operation.

Bearing wear: Insufficient lubrication; excessive axial force during installation; bearing material fatigue.

7. Motor-related failures

Motor overload: Internal blockage in the pump housing (e.g., gear seizure); output pressure far exceeds the rated value; improper matching between the motor and pump.  Motor abnormal noise: Damaged motor bearings; friction between the rotor and stator; poor contact in the power supply lines.

8. Control component failures

Safety valve blockage: Valve core stuck by debris; spring fatigue failure; valve seat wear and poor sealing.

Pressure gauge malfunction: Damaged internal components; blocked connecting pipes; stuck pointer.

Gear pump failures are often interrelated and require analysis of operating parameters and maintenance records to accurately identify the root cause.
