Characteristics and maintenance of hydraulic cylinder of seeders

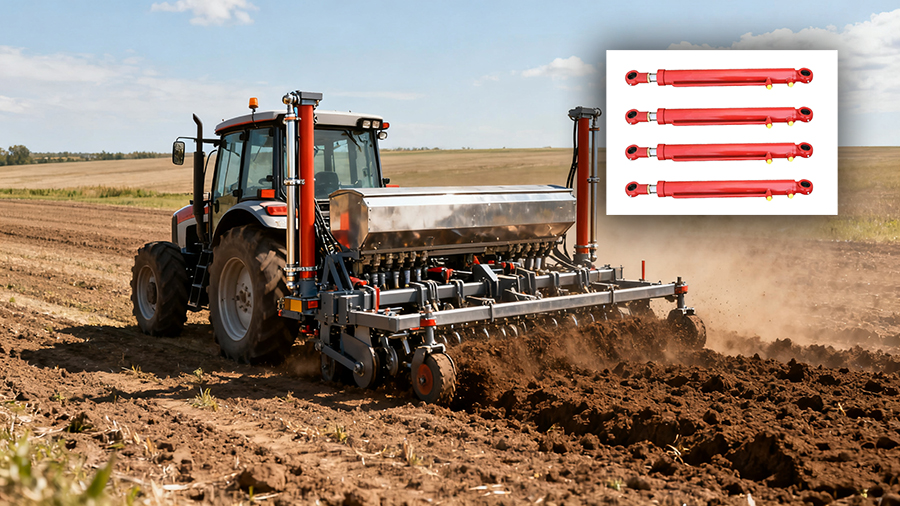

Hydraulic cylinders for seeders

Hydraulic cylinders for seeders typically employ a double-acting design to enable functions such as lifting, folding, and tilting of the seeder, while meeting the high precision requirements for depth and spacing in precision seeding. The following provides a detailed introduction:

First, Core Functions and Application Scenarios

1. Lifting and Folding Functions

Seeders must transition between transport and operational modes. Hydraulic cylinders enable balanced lifting through synchronized control. For example, no-till seeders employ tandem synchronized double-acting cylinders to ensure multiple cylinders move in unison, eliminating the need for manual width adjustments during transport. Some models use hydraulic cylinders to twist horizontal components upward, reducing the operating width from 12 meters to a compliant range for public road transport.

2. Precision Seeding Control

Hydraulic cylinders automatically adapt to varying soil conditions by adjusting pressure on seeding tines or coulters, maintaining consistent seed placement depth and spacing. For instance, during corn or soybean seeding, the hydraulic system integrates with electronic devices to achieve centimeter-level depth adjustment, boosting germination uniformity by over 15%.

3. Multi-Functional Operation Support

Hydraulic cylinders drive components like furrow openers and soil coverers to perform integrated operations including furrowing, fertilizing, seeding, and soil covering. Some models feature a hydraulic system that lifts the seeding section independently, enabling separate rotary tillage and seeding operations for enhanced flexibility.

Second, Types and Performance Characteristics of hydraulic cylinders for seeders

1. Single-Acting Hydraulic Cylinder

Principle: Extends using hydraulic oil pressure; retracts via gravity or spring return.

Application: Suitable for single-direction motion scenarios, such as sprayer folding arms.

Limitations: Retraction speed significantly affected by load; failure rate 15% higher than double-acting cylinders (primarily due to seal wear during retraction).

2. Double-Acting Hydraulic Cylinder

Principle: Dual oil circuits control extension/retraction, enabling bidirectional force output and speed regulation.

Applications: Dominates heavy-duty scenarios like corn harvester ear-removal roller adjustment and seeder depth control.

Advantages: Control precision reaches ±1 mm, ensuring consistent cutting height; integrated buffer device extends service life to 3000 hours.

Third, Maintenance and Care Recommendations

1. Regularly replace hydraulic oil: Change every 1-6 months and clean the reservoir to remove contaminants.

2. Full extension/retraction test run: Execute 5 full strokes before each use to purge air and preheat the system.

3. Control oil temperature: Maintain optimal oil temperature between 20-55°C to prevent permanent deformation of seals.

4. Protect piston rods: Prevent impacts and scratches; regularly clean off mud and debris.

5. Inspect connection points: Tighten immediately upon detecting looseness to avoid rusting in oil-free conditions.
