Parker 333/G5392 JCB 3CX Hydraulic Pump 29 + 23 CC/REV
Parker 333/G5392 JCB 3CX Hydraulic Pump 29 + 23 CC/REV
The 333/G5392 double gear pump is a reliable aftermarket hydraulic component specially engineered for JCB 3CX construction machinery. With displacement of 29+23 cc/rev, this cast‑iron pump delivers stable high‑pressure output for complex working conditions. It features precise gear structure, low noise and long service life. Perfect direct replacement for original units, it ensures consistent hydraulic power for loader and excavator operations. Strictly manufactured to match OEM dimensional standards for easy installation.
Product core parameters
| Rotation | Clockwise (looking from shaft end) |
| Shaft | 1" Diameter 15 tooth SAE splined shaft 16/32 Pitch |
| Mounting Flange | SAE B 2 hole |
| Front Pump Displacement | 29 cc/rev (29L/Min per 1000 rpm) |
| Rear pump displacement | 23 cc/rev (23L/Min per 1000 rpm) |
| Weight | 26KG |
| Inlet | Single 2" SAE flange inlet |
| Front pump outlet | 1 1/16"-12 UNF threaded |
| Rear pump outlet | 7/8"-14 UNF threaded |
| Maximum workingpressure on front pump | 275bar |
| Maximum workingpressure on rear pump | 275 bar |
Replace Part Number: 333/C5234, 333C5234, 333-C5234, 333/G5392, 333G5392, 333-G5392
Product Application
The 333/G5392 hydraulic gear pump is mainly applied to JCB 3CX series backhoe loaders. It supplies steady hydraulic power for walking, lifting and digging actions. This aftermarket pump fits multiple working scenarios of construction sites. It serves as an ideal replacement for damaged original pumps to restore normal machine performance.
The following products are available for sale.
| 919/75002 | 20/925579 | 332/F9032 | 334/Y1469 |
| 333/G5393 | 20/925339 | 20/925744 | 332/T4833 |
| 7029210001 | 20/925338 | 20/903300 | 20/925732 |
| 191-2943 | 20/925578 | 332/G7134 | 20/925613 |
| 332/F9030 | 332/F9028 | 333/G5389 | 20/925588 |
| 20/925580 | 332/F9031 | 20/903000 | 20/925356 |
| 400-E0868 | 20/925581 | 20/925366 | 20/918500 |
| 332/G6350 | 333/G5391 | 20/925586 | 20/925591 |
| 20/912800 | 20/925340 | 333/C5234 | 20/925355 |
| 20/903100 | 20/925341 | 333/G5392 | 20/918300 |
| 20/902900 | 20/907600 | 20/925337 | 333/W2430 |
| 7470-4070-4072 | 20/903200 | 20/925472 | |
| 333/G5390 | 20/911200 | 20/925592 | |
| 332/G7135 | 919/71700 | 20/925357 | |
| 332/F9029 | 919/66700 | 20/925647 |
Company Profile

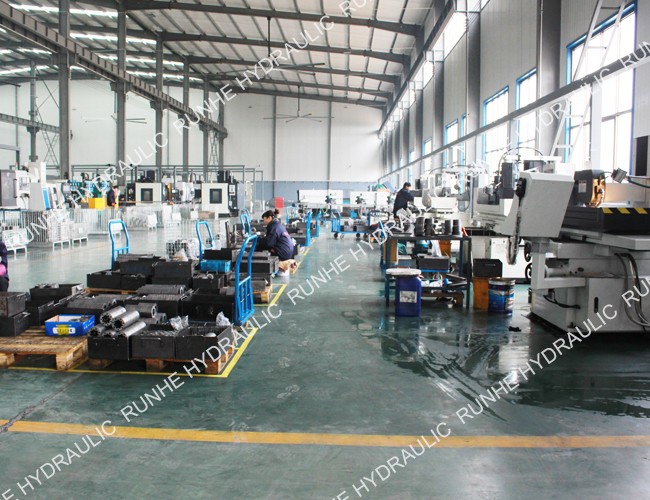

Hebei Runhe Hydraulic Machinery Co., Ltd. is a leading manufacturer of hydraulic system
solutions and one of the most well-known suppliers of hydraulic piston pumps to many large
OEM equipment manufacturers. We have over 12 years of industry experience.

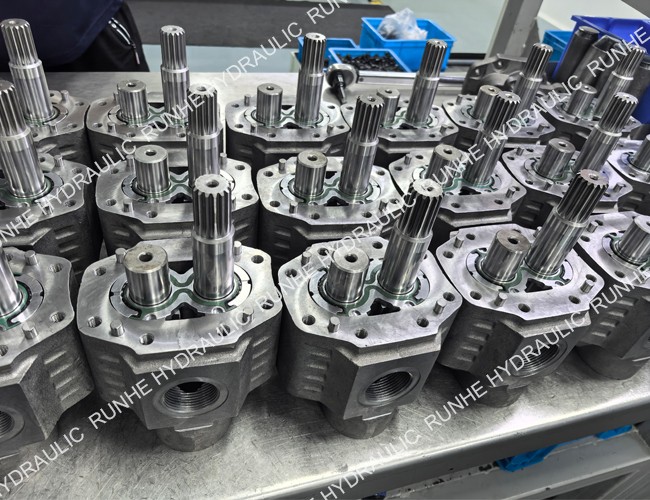

Our products include hydraulic cylinders, hydraulic pumps, and hydraulic motors, widely
used in automation equipment, agricultural machinery, hoisting machinery, engineering vehicles,
printing machinery, intelligent warehousing systems, port and shipbuilding, and many other
industries. In addition to standard series hydraulic cylinders, we also provide customized
production services based on customer drawings. Our non-standard customization capabilities
can meet customers' special needs, such as special port shapes, special materials,
special installation methods, special performance characteristics, and stacked hydraulic valves.
