Hydraulic cylinder of the reversible plow
Hydraulic cylinder of the reversible plow
Runhe Hydraulic supplies heavy‑duty double‑acting hydraulic cylinders for agricultural reversible plows. Built with high‑strength materials, they deliver stable 180° turning, long service life, and reliable performance in harsh farming conditions, fully matching 80–400 HP tractors.
Product Basic Information
Item | Light Duty (3–4 Bottoms) | Medium Duty (4–5 Bottoms) | Heavy Duty (5–6 Bottoms) | Extra Heavy Duty (6+ Bottoms) |
Bore Diameter (D) | Φ70 / Φ80 mm | Φ90 / Φ100 mm | Φ100 / Φ110 mm | Φ110 / Φ125 / Φ140 mm |
Rod Diameter (d) | Φ40 / Φ45 mm | Φ45 / Φ50 mm | Φ50 / Φ55 mm | Φ55 / Φ60 / Φ70 mm |
Standard Stroke | 250–300 mm | 300–350 mm | 350–400 mm | 380–450 mm |
Rated Pressure | 16 MPa | 18–20 MPa | 20–22 MPa | 22–25 MPa |
Test Pressure | 24 MPa | 31.5 MPa | 31.5 MPa | 31.5–40 MPa |
Extending Force (at 20MPa) | ≈100 kN | ≈157 kN | ≈190 kN | ≈308 kN |
Mounting Type | Clevis / Ear | Clevis / Ear | Clevis / Ear | Clevis / Ear |
Pin Hole | Φ25 / Φ28 mm | Φ28 / Φ32 mm | Φ32 / Φ35 mm | Φ35 / Φ40 mm |
Suitable Tractor | 80–120 HP | 120–180 HP | 180–260 HP | 260–400+ HP |
Note: If you require other specifications of hydraulic cylinders, please contact us.
Product Advantages

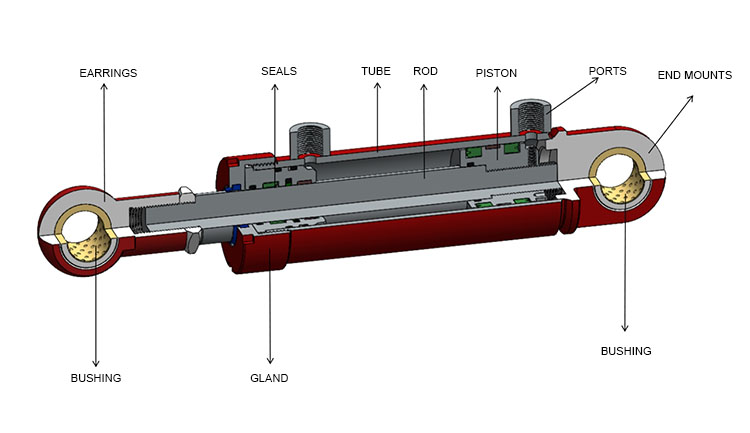

Runhe Hydraulic cylinders for reversible plows feature robust construction, high-pressure resistance, and stable 180° flipping performance. With hardened chrome-plated piston rods and premium seals, they ensure durability, leak-proof operation, and long service life in harsh field conditions. Compact design, easy installation, and strong adaptability to 80–400HP tractors make them ideal for reliable agricultural use.
Our Factory

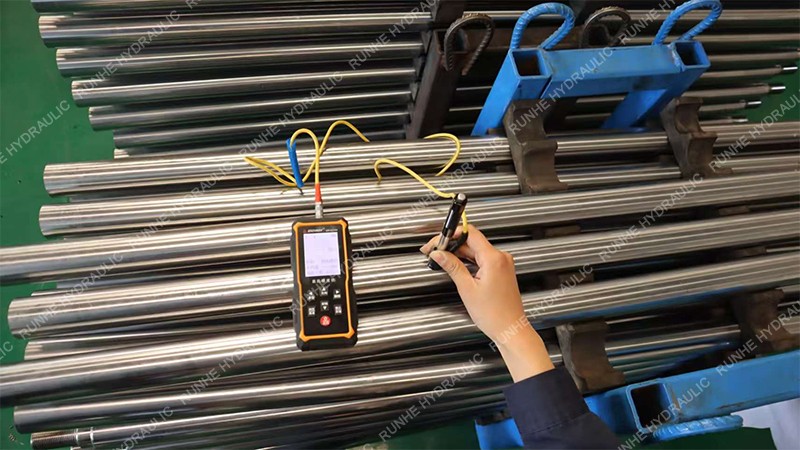

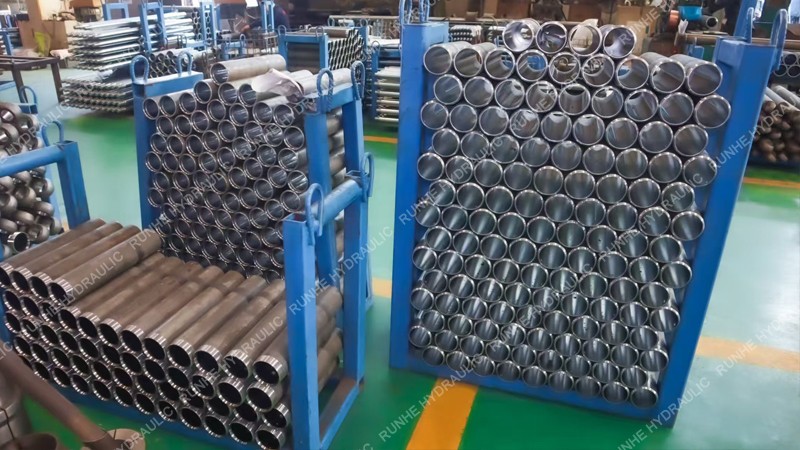

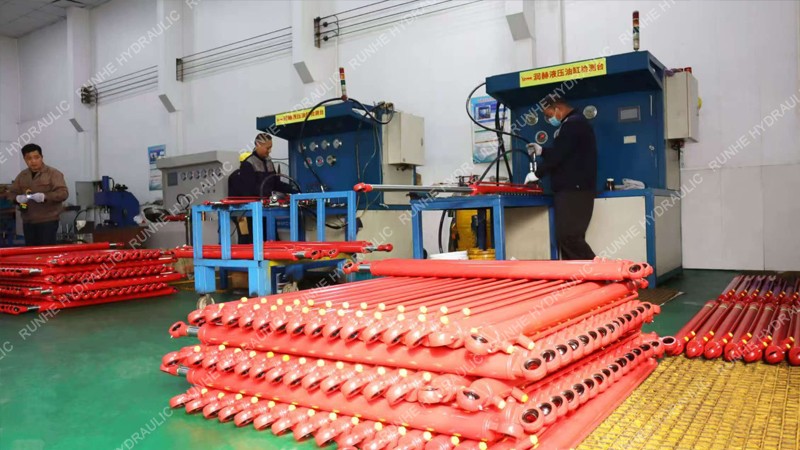

Runhe Hydraulics is a professional manufacturer of hydraulic pumps and cylinders, focusing on agricultural machinery components like combine harvester hydraulic cylinders. With advanced precision processing and strict quality control, we offer OEM/ODM solutions, reliable performance and custom services. Our products are exported globally, serving agricultural and engineering machinery fields with stable supply and professional after-sales support.
