Hydraulic cylinder of manure spreader
Hydraulic cylinder of manure spreader
Runhe Hydraulic offers heavy-duty hydraulic cylinders designed for manure spreaders. Featuring robust structure, corrosion resistance, reliable sealing, and stable performance under harsh conditions, they ensure smooth operation, long service life, and perfect compatibility with agricultural machinery.
Product Basic Information
Item | Light Duty (≤3m³) | Medium Duty (3–6m³) | Heavy Duty (6–10m³) | Extra Heavy (≥10m³) |
Bore Diameter (D) | Φ50 / 63 mm | Φ63 / 80 mm | Φ80 / 100 mm | Φ100 / 125 mm |
Rod Diameter (d) | Φ25 / 28 mm | Φ28 / 32 mm | Φ32 / 40 mm | Φ40 / 50 mm |
Standard Stroke | 150–250 mm | 250–350 mm | 350–450 mm | 450–600 mm |
Rated Pressure | 14–16 MPa | 16–18 MPa | 18–20 MPa | 20–22 MPa |
Test Pressure | 21–24 MPa | 24–27 MPa | 27–30 MPa | 30–33 MPa |
Extending Force (16MPa) | ≈31–50 kN | ≈50–80 kN | ≈80–125 kN | ≈125–245 kN |
Mounting Type | Clevis / Trunnion | Clevis / Trunnion | Clevis / Trunnion | Clevis / Trunnion |
Pin Hole | Φ20 / 22 mm | Φ22 / 25 mm | Φ25 / 28 mm | Φ28 / 32 mm |
Port Size | M14×1.5 / G1/4" | M18×1.5 / G3/8" | M22×1.5 / G3/8" | M27×2 / G1/2" |
Suitable Tractor | 50–80 HP | 80–120 HP | 120–180 HP | 180–300+ HP |
Note: If you require other specifications of hydraulic cylinders, please contact us.
Product Advantages
Runhe Hydraulic cylinders for manure spreaders are built for heavy-duty agricultural use. With rugged construction, corrosion-resistant chrome rods, and high-performance sealing systems, they ensure stable, leak-free operation in harsh, dusty, and corrosive environments. Strong load capacity, long service life, easy installation, and excellent compatibility with various tractor-powered spreaders make them a reliable choice for efficient farming.

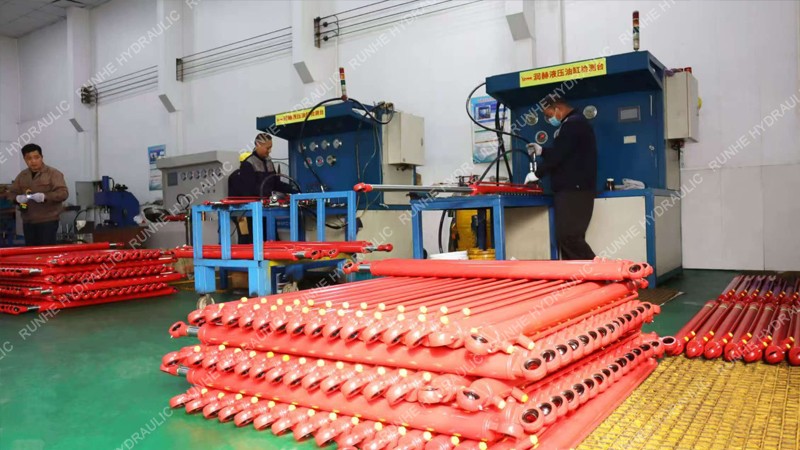

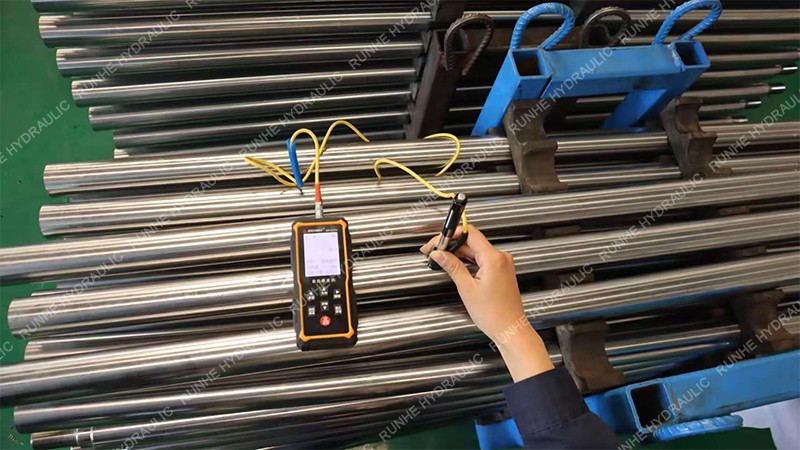

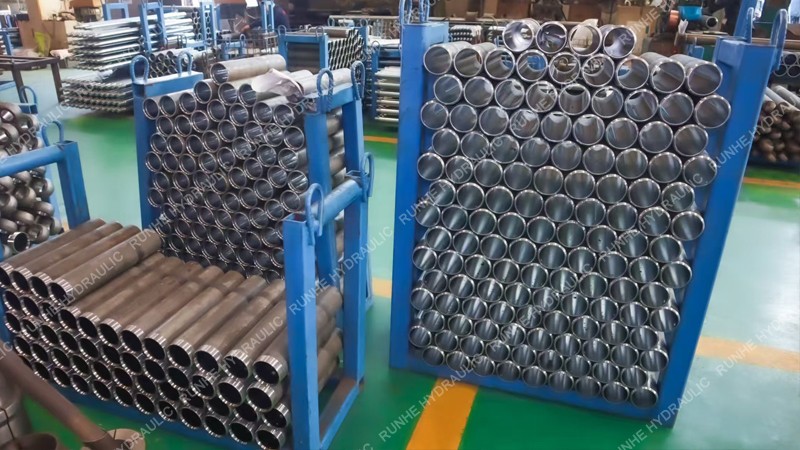

Our Factory
Runhe Hydraulics is a professional manufacturer of hydraulic pumps and cylinders, focusing on agricultural machinery components like combine harvester hydraulic cylinders. With advanced precision processing and strict quality control, we offer OEM/ODM solutions, reliable performance and custom services. Our products are exported globally, serving agricultural and engineering machinery fields with stable supply and professional after-sales support.
