PGP365 Hydraulic Gear Pumps
PGP365 SERIES
Pump of Cast Iron Bushing Design
.Heavy duty, cast iron, external gear pump .
.Standardization, universalization, serialization design .
. Displacement range: 44.3ml/r -147.5 ml/r，
Max rated pressure: 245bar, Intermittent: 275bar，
Speed range: 400-2400 RPM.
PERFORMANCE
Bushing series pressure and displacement
CODE | 07 | 10 | 12 | 15 | 17 | 20 | 22 | 25 |
Gear Width | 3/4" | 1" | 1-1/4" | 1-1/2" | 1-3/4" | 2" | 2-1/4" | 2-1/2" |
Theoretical Displacement | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 | 8.1 | 9 |
44.3 | 59 | 73.8 | 88.5 | 103.3 | 118 | 132.8 | 147.5 | |
Max Pressure Continuous | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3250 | 3000 |
245 | 245 | 245 | 245 | 245 | 245 | 225 | 210 | |
Max Pressure Intermittent | 4000 | 4000 | 4000 | 4000 | 4000 | 3850 | 3500 | 3300 |
275 | 275 | 275 | 265 | 275 | 265 | 245 | 225 | |
Speed RPM | 400-2400 | |||||||
Flow: GPM/LPM Pressure : PSI/ba

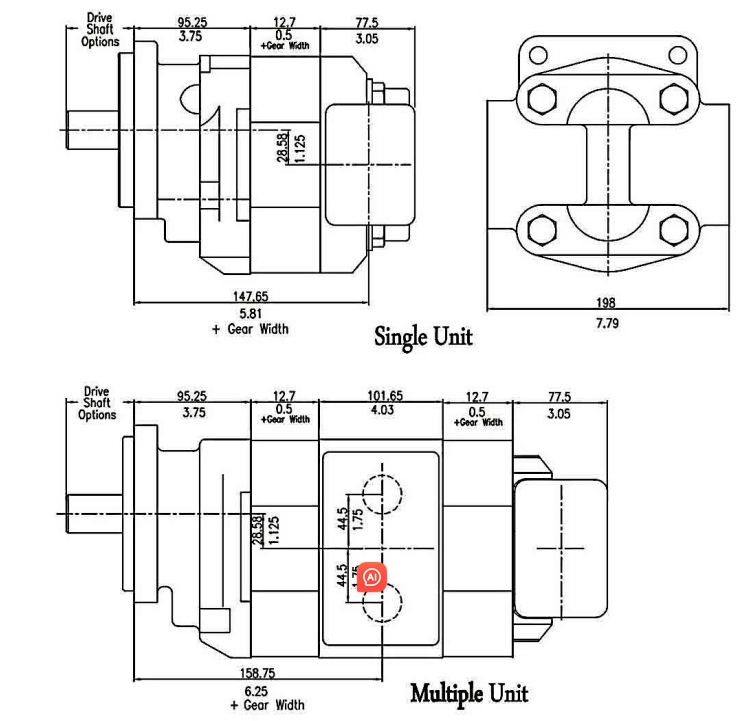

Dimensional Date
