PGM330 series fixed displacement gear motors offer high pressure durability due to their cast iron construction,making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets.

They are available as a standard motor.

Markets:

• Aerial

• Agriculture Machinery

• Construction Equipment

• Forestry Equipment

• Material Handling Equipment

• Turf Equipment

• Vocational & Municipal Equipment

• Mining

• Oil & Gas

Product features:

·High strength, good efficiency, long life, suitable for heavy loads and harsh working environments, and still has excellent performance even under high temperature and low viscosity conditions

·High-strength cast iron housing

·Wear-resistant sliding bearings

·Advanced pressure balance side plates and sealing structures

·Standardized, universal, serialized design. Can be double-linked or multi-linked; there are a variety of installation connection forms, and the connection size meets SAE standards

PGM330 Gear Motor Performance Parameters

Displacement (ml/rev)	Input flow (2000 RPM LPM)	Tooth width （in）	Rated pressure （MPa）	Maximum pressure （MPa）	Operating speed RPM （Maximum Minimum）	Output power （KW）	Output torque （Nm）
32.3	71.8	1＂	20.7	24	2400 600	19.9	95
40.4	89.8	1 1/4＂	20.7	24	2400 600	24.9	118.9
48.4	107.6	1 1/2＂	20.7	24	2400 600	30	143.3
56.5	125.6	1 3/4＂	19	22	2400 600	32.1	153.3
64.6	143.6	2＂	16	19	2400 600	31	148

Note:

The data in the table are the average values obtained based on a series of experimental tests.

Test conditions: oil temperature: 50℃; oil viscosity: 31.8cst@38℃

Appearance And Installation Connection Dimensions

PGM330 Series Single Motor

A=114.3+B

B=12.7+tooth width

C=186.4+B

PGM330 Series Dual Motor

A1=124+(B1/2)

A2=79.3+B2

B1=12.7+tooth width

B2=12.7+tooth width

C=275.4+B1+B2

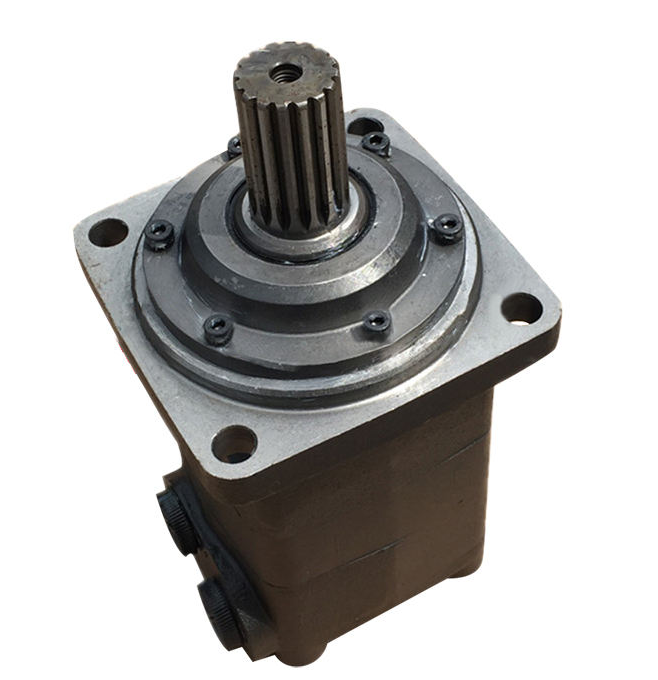

PGM330 Hydraulic Motor
